How Does Printer Toner Work: Organic Photoconductor Drum

Each component inside a laser printer has its own mission to work together and deliver various prints. You can see the whole picture from our previous article: How Does Printer Toner Work?. Here, the main character in this article will be the Organic Photoconductor Drum, commonly abbreviated to OPC.

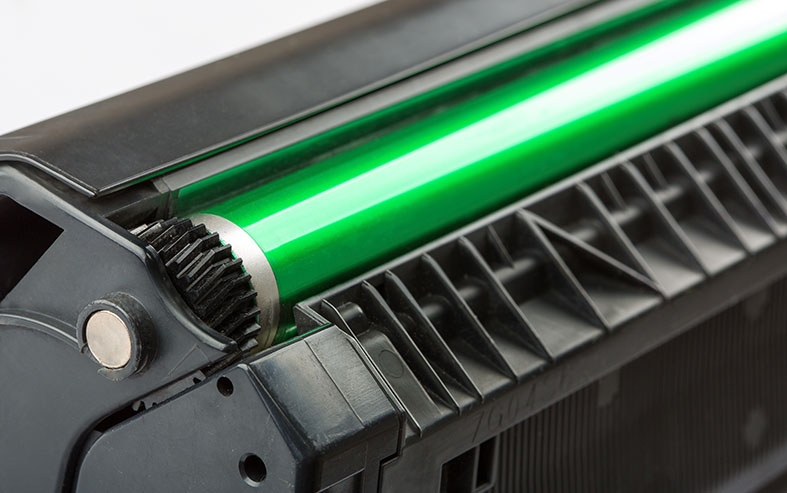

OPC drum is a critical component of a printer or copier that impacts the image printing performance. Its main function is to receive and form an image by the characteristic of electrical properties.

A typical OPC drum consists of

A.  A metal tube made of aluminum. Most OPC manufacturers produce a mirror-like surface through diamond turning.

B.  Charge Generation Layer (CGL):

It offers the capability of polarity to the drum. The CGL layer is very thin, ranging from 0.1 to 1 micron average.

C.  Charge Transport Layer (CTL):

It allows the laser to penetrate and reach CGL and also keeps the laser from the printer straight, so the image is not distorted.

The thickness of a typical CTL is approximately 20 microns. This layer is generally transparent. Furthermore, it must be durable and resistant to abrasion. As CTL technology improves, the print yield will increase.

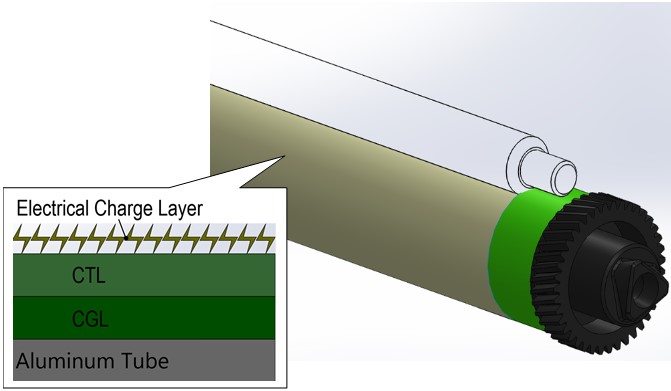

STEP 1: The OPC surface receives a uniform negative charge from the primary charge roller (PCR).

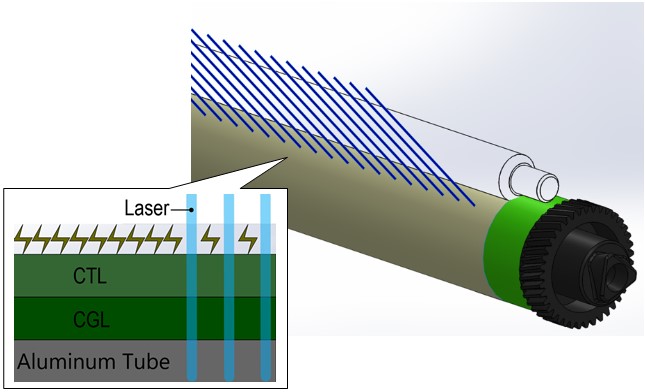

STEP 2: The light energy passes through CTL and into CGL to neutralize the negative charge on the drum surface.

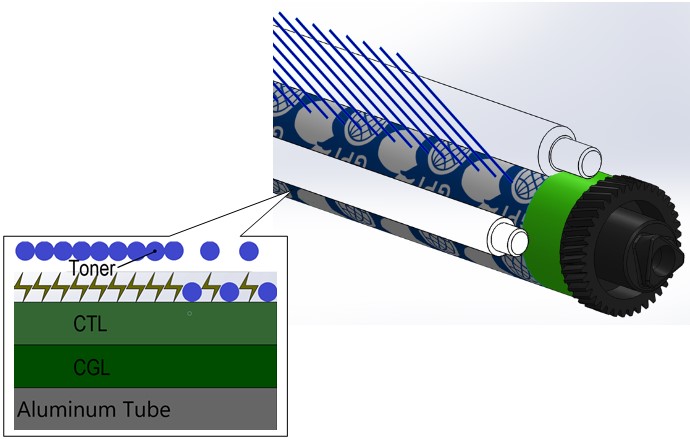

STEP 3: OPC Drum adheres the toner from the Developer Roller on neutralized areas



STEP 4: Convey the adhesive toner to the paper.
